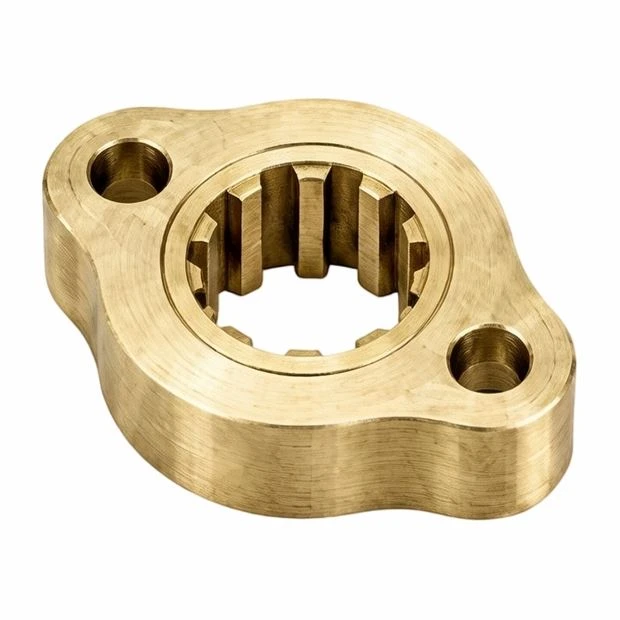

The Steel Backed Gear Motor Thrust Plate is designed for high-frequency alternating sliding at the end face of gear motors. It supports external gear motors and tandem gear motors that operate with repeated pressure changes and frequent direction reversal.

Material Structure

The plate combines a rigid steel backing with a CuSn6Zn6Pb3 tin-zinc-lead bronze friction layer.

The steel backing provides structural support. The bronze layer supplies the low-friction and wear-resistant working surface.

Alternating Load Resistance

During operation, the high- and low-pressure chambers of a gear motor change continuously. Forward and reverse rotation also produces repeated impact on the thrust plate.

The component is designed to maintain stable performance under these alternating loads and resist fatigue-related damage.

Surface Contact

Parallelism is controlled within 0.003 mm, while gear-face contact is at least 98%.

Accurate surface contact helps distribute the operating load evenly and supports stable motor startup.

Friction Performance

The oil-lubricated friction coefficient is 0.06–0.12. The plate also provides scoring resistance under boundary lubrication conditions.

The maximum supported rotational speed is 3,000 r/min.

Direct Replacement

Controlled thickness and dimensional consistency allow the Steel Backed Gear Motor Thrust Plate to replace a matching original component without secondary fitting.

This can shorten the maintenance cycle and reduce additional machining work.

Application Areas

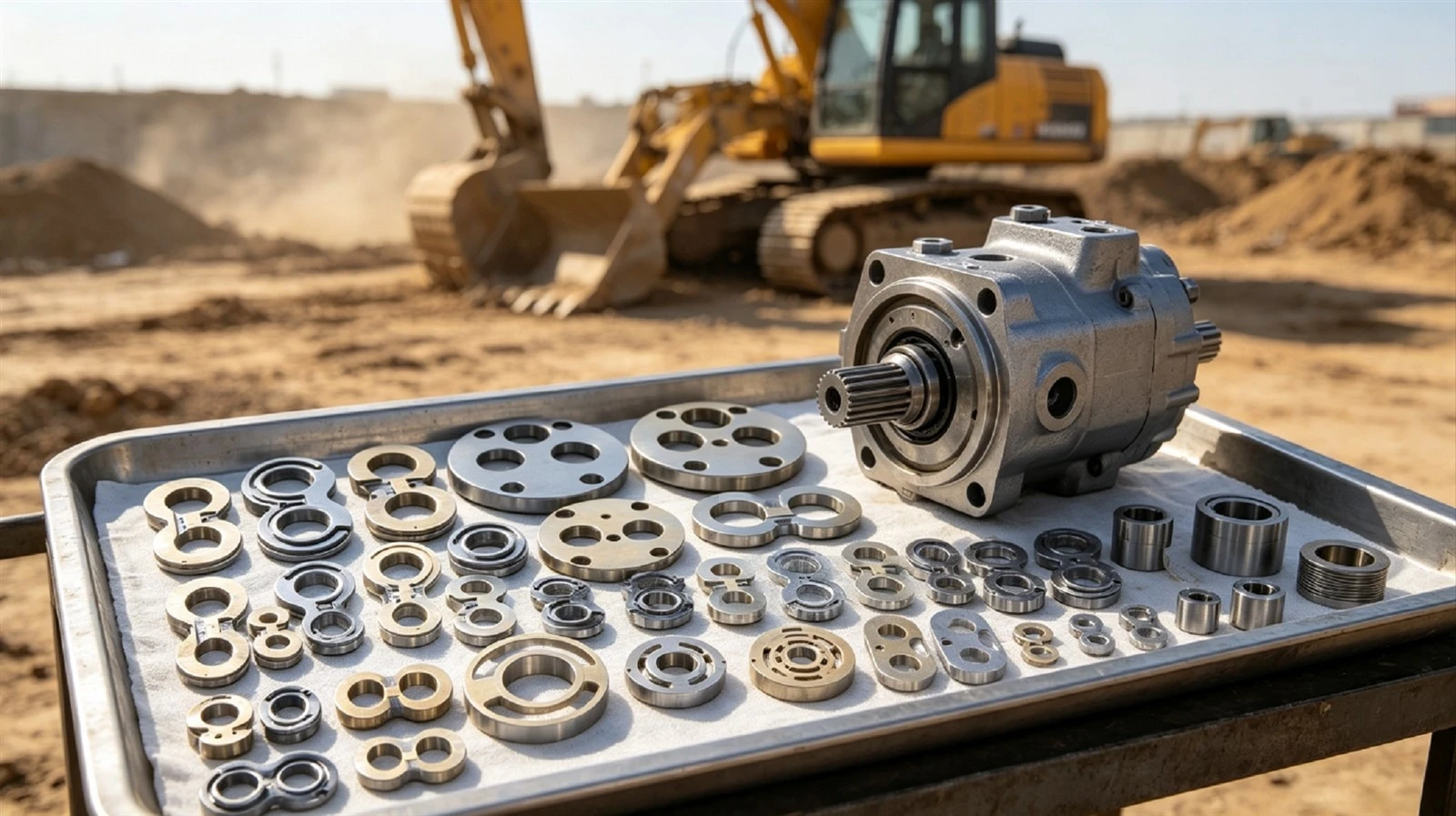

The product is suitable for gear motors used in construction machinery travel systems, sanitation vehicles, forklifts, and other hydraulic drive equipment.

Customization Support

Production is available according to customer drawings or physical samples. The minimum order quantity is 100 pieces.

Custom samples normally require 30 days. Urgent orders may be completed approximately five days earlier.

Delivery and Service

Standard delivery is 25–30 days. Repeat orders may be delivered about one week earlier.

A six-month warranty is provided. Return or replacement requests are handled within five days.

Manufacturing Background

Bimetal production experience dates back to 1995. The company has more than 50 employees and two staff members assigned to after-sales service.

Product Specifications

Parameter	Specification
Material Structure	Steel backing + CuSn6Zn6Pb3 bronze friction layer
Rated Working Pressure	≤28 MPa
Parallelism Tolerance	≤0.003 mm
Gear-Face Contact	≥98%
Maximum Rotational Speed	3,000 r/min

Material Specifications

Layer	Material Grade	Strength Type	Strength (MPa)	Max. Linear Velocity (m/s)	Hardness (HB)	Remarks
Copper Alloy Friction Layer	CuPb10Sn10	Shear Strength	≥150	12	60–90	Surface coating available
Copper Alloy Friction Layer	CuPb7Sn7Zn3	Shear Strength	≥150	10	60–90	Surface coating available
Steel Substrate	SAE1010	Tensile Strength	≥365	-	90–130	Mild carbon steel
Steel Substrate	Q235B	Tensile Strength	370–500	-	90–130	Mild carbon steel
Steel Substrate	Q345B	Tensile Strength	490–675	-	110–170	Low-alloy steel
