Product Overview

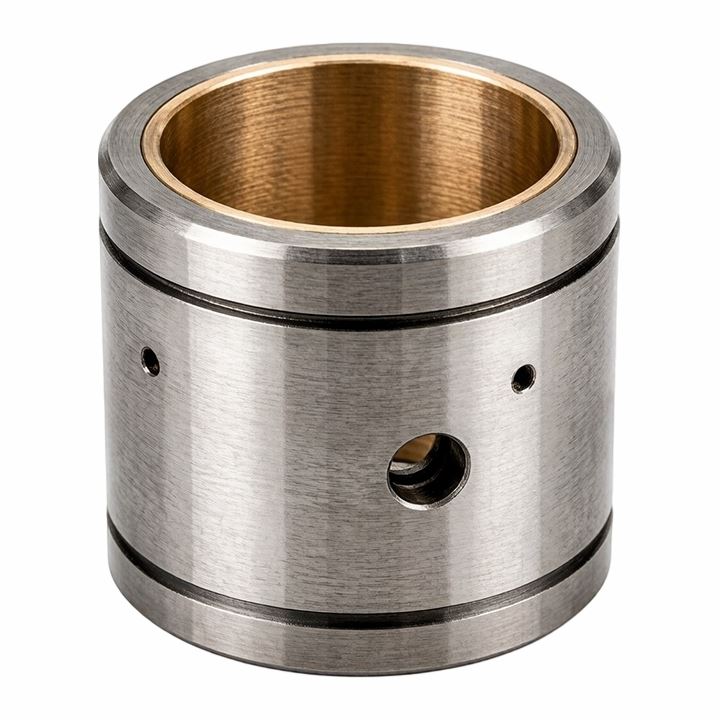

The sintered metal bushing is designed for high-pressure side-load conditions in axial and variable piston pumps.
It can be used as a main shaft bushing or a cylinder block guide bushing.
Material Structure
The product combines an alloy steel backing with a high-lead bronze inner wall.
The alloy steel provides strength and deformation resistance. The bronze surface creates a low-friction contact layer for the matching shaft or guide surface.
Side-Load Resistance
Piston pump swash plate structures generate strong lateral forces during high-pressure operation.
The sintered metal bushing is designed to withstand these side loads while maintaining its shape and installation accuracy.
Impact Performance
The product is classified as having high impact resistance.
This makes it suitable for working positions exposed to repeated pressure changes and mechanical shock.
Static Load Capacity
The radial static load capacity reaches 280 N/mm².
The reinforced steel backing helps the bushing remain stable under concentrated loads from the piston pump shaft system.
Wear Protection
The high-lead bronze inner wall provides anti-friction and wear-resistant performance.
It helps reduce wear failures between the piston pump shaft and bushing, supporting longer service intervals and lower maintenance requirements.
Precision Control
Bore roundness is controlled within 0.003 mm.
The alloy layer hardness is HB 80–110, and the maximum operating temperature is 260°C.
Application Areas
The product is suitable for axial piston pump main shafts and cylinder block guide positions.
It is also used in high-pressure piston pumps for construction machinery, metallurgical equipment, and mining machinery.
OEM and ODM Support
OEM and ODM production is available according to customer drawings or samples.
The minimum order quantity is 100 pieces.
Sample and Delivery Time
Custom samples normally require 30 days. Urgent orders may be completed around five days earlier.
Standard delivery is 25–30 days. Repeat orders may be delivered approximately one week earlier.
Commercial Information
The preferred trade term is EXW, and settlement is mainly made in US dollars.
The company's bimetal production experience dates back to 1995. The Baiyun brand was established in 2004, and the company was formally registered in 2010.
Product Specifications
|
Parameter |
Specification |
|
Material Structure |
Alloy steel backing + high-lead bronze inner wall |
|
Radial Static Load |
≤280 N/mm² |
|
Bore Roundness |
≤0.003 mm |
|
Alloy Layer Hardness |
HB 80–110 |
|
Maximum Working Temperature |
260°C |
